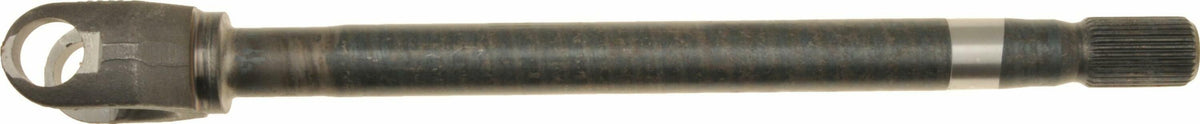

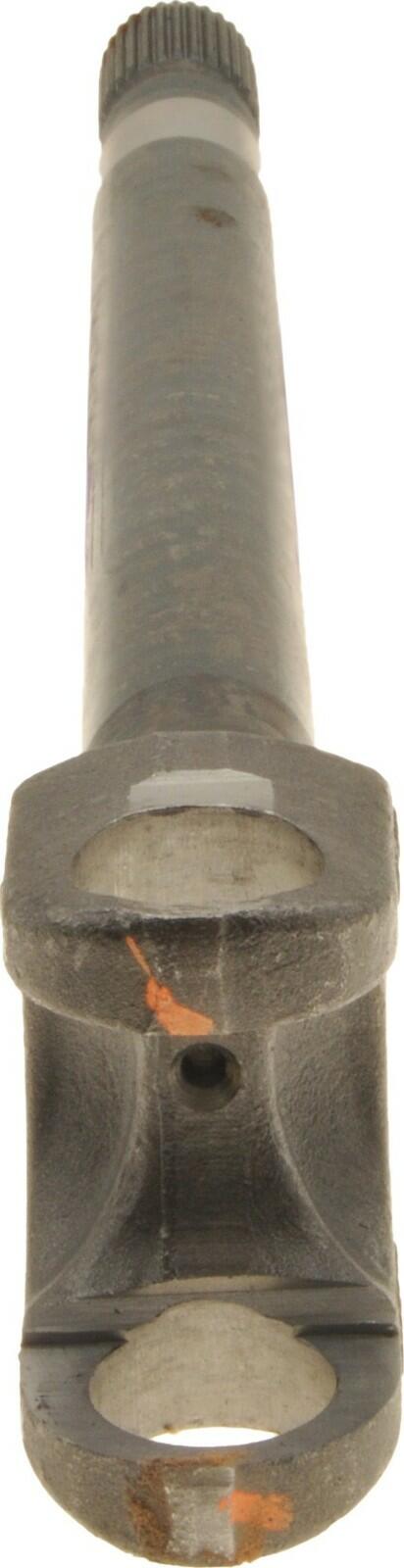

Spicer 76814-1X Front Left Inner Axle Shaft 94-01 Dodge Ram Dana 44 30 Spline

The Spicer 76814-1X is a genuine OE-quality front left/driver-side inner axle shaft for applicable Dodge Ram trucks equipped with the Dana 44 disconnect front axle. Spicer's application guide identifies it as the left inner shaft for 19942000 Ram 1500 applications, while current specialty application data extends fitment through 2001 and includes applicable Ram 2500 Dana 44 configurations.

This is the inner shaft only, not a complete axle assembly. The outer stub shaft and universal joint are not included. The shaft is designed to mate with the Spicer 74917X outer shaft and uses the Spicer 5-760X universal joint in the corresponding complete axle assembly.

Genuine Spicer axle shafts are manufactured from high-grade steel and are ultrasonically tested for internal cracking as part of Dana's OE-quality manufacturing process.

Specifications:

• Brand: Spicer
• Manufacturer: Dana
• Manufacturer Part Number: 76814-1X
• UPC: 023913211417
• Product Type: Front Inner Axle Shaft
• Axle Model: Dana 44
• Position: Front Left / Driver Side
• Primary Application: 19942001 Dodge Ram 1500; applicable Ram 2500 Dana 44
• Axle Configuration: Disconnect Front Axle
• Inner Shaft Spline Count: 30 at differential end
• Shaft Diameter at Splines: 1.31"
• Shaft Length: Approximately 20.12"
• Universal Joint Series: 1310 / uses Spicer 5-760X in complete assembly
• ABS: Non-ABS shaft
• ABS Tone Ring: Not Included
• Outer Axle Shaft: Not Included
• Universal Joint: Not Included
• Bearing: Not Included
• Seal: Not Included
• Material: Steel
• Country of Origin: Mexico
• Condition: New

FEATURES

• Spicer genuine OE replacement
