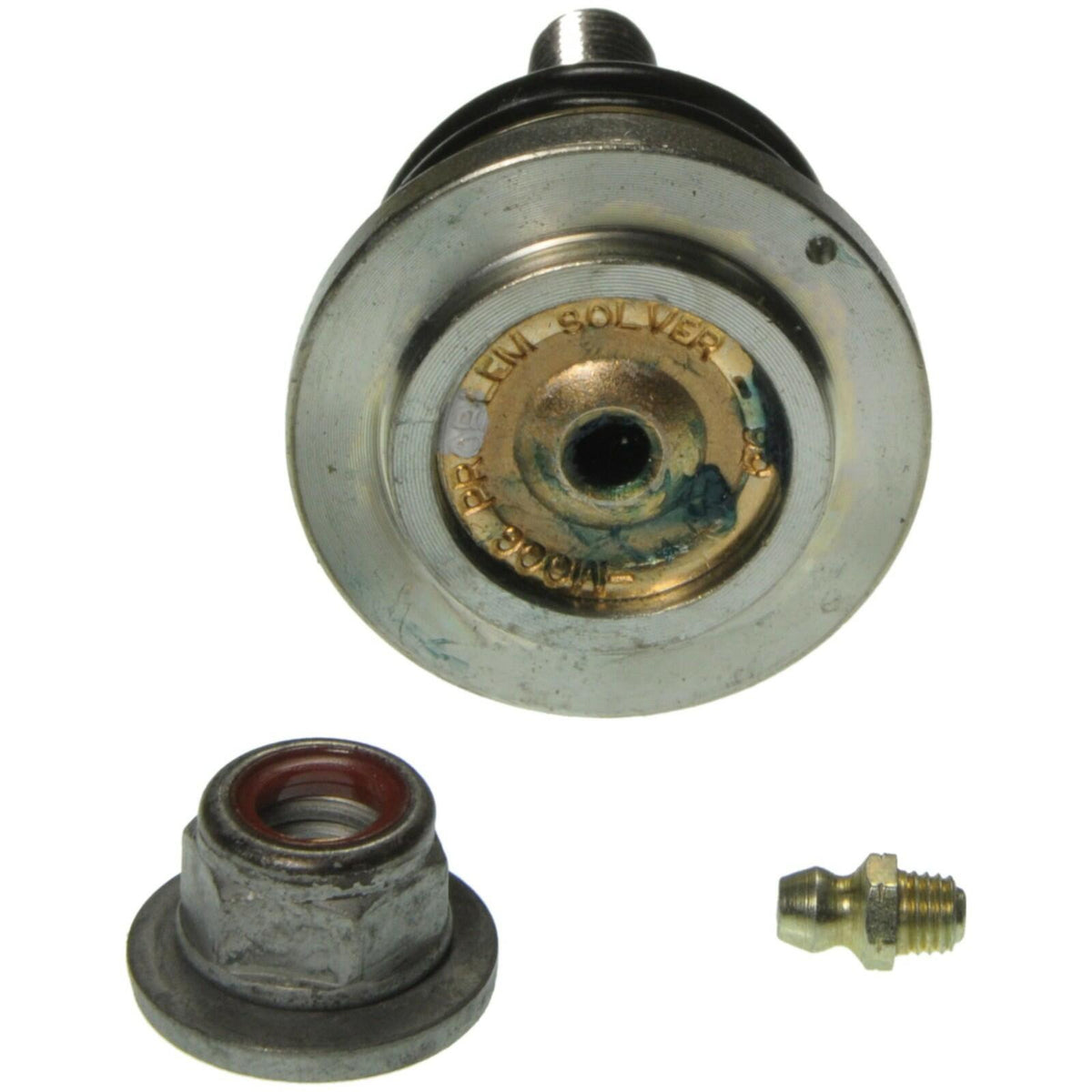

MOOG K500065 Front Upper Ball Joint 04-09 Cadillac SRX 05-11 STS

Restore proper front suspension movement and steering response with the MOOG K500065 Front Upper Suspension Ball Joint. Designed specifically for Cadillac SRX and STS applications, this premium replacement ball joint installs in the front upper position and fits either the driver or passenger side.

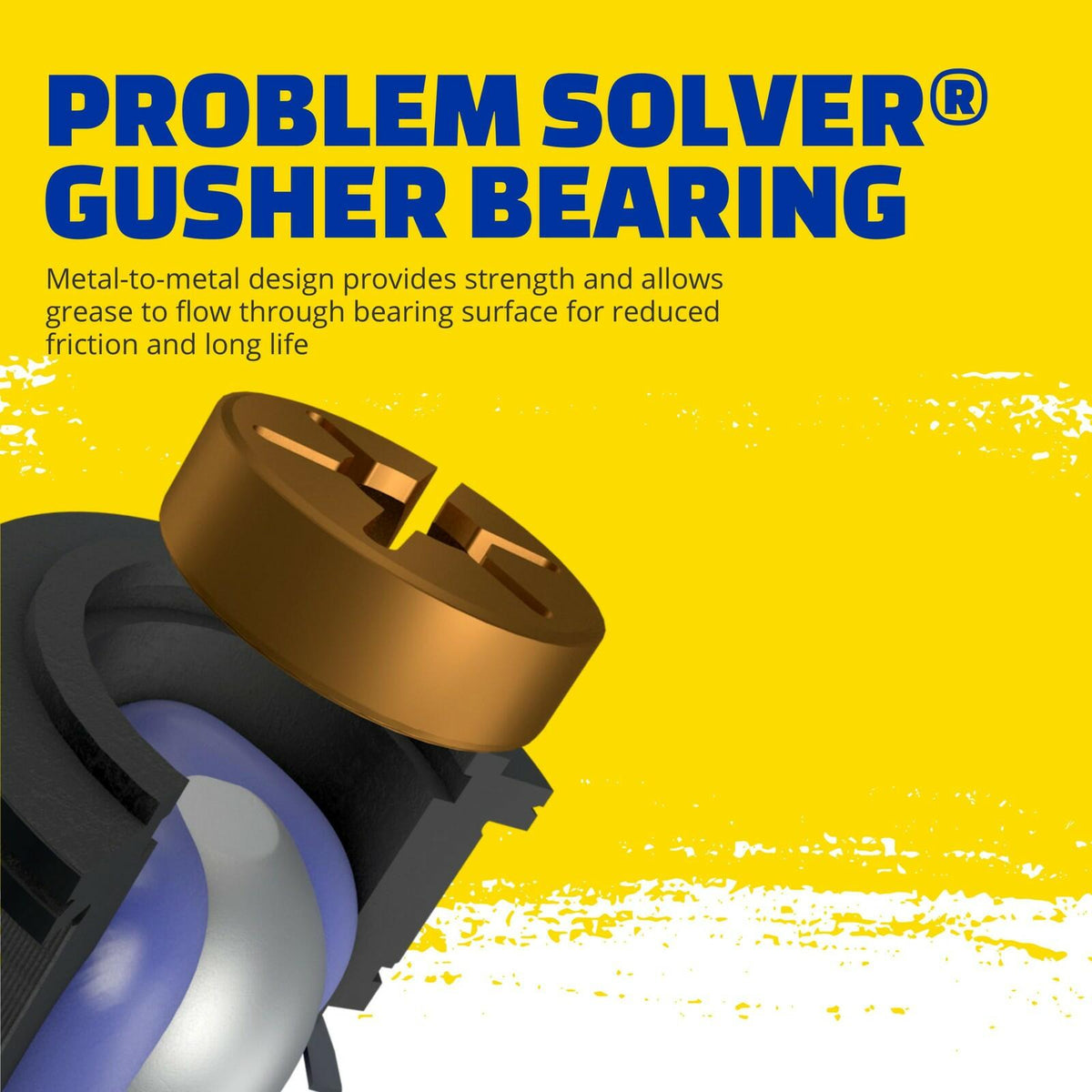

The K500065 features MOOG's Problem Solver powdered-metal gusher bearing design, which allows grease to flow through the bearing surface to help reduce friction and promote long service life. A premium resin-plated housing helps resist galvanic corrosion between the ball joint housing and aluminum control arm, while MOOG's precision cover-plate design maintains tight internal tolerances.

This press-in ball joint is greaseable, allowing fresh lubricant to help flush contaminants from the bearing surfaces. Heat-treated components and application-specific dimensions provide a durable direct replacement for a worn original ball joint.

Fits 2004-2009 Cadillac SRX and 2005-2011 Cadillac STS models. One ball joint is included; two are required when replacing both front upper ball joints.

Specifications

• Brand: MOOG
• Manufacturer Part Number: K500065
• Product Type: Suspension Ball Joint
• Placement: Front Upper
• Side: Left or Right
• Cadillac SRX: 2004-2009
• Cadillac STS: 2005-2011
• Mounting Type: Press-In
• Greaseable: Yes
• Adjustable: No
• Maximum Outside Diameter: 2.000 in.
• Bearing Design: Powdered-Metal Gusher Bearing
• Boot Material: Neoprene
• Quantity: 1
• Quantity Required: 2 per vehicle
• GM/OE References: 19181784, 19181785, 11519879, 88955491, 88955492
• ACDelco: 45D1770 / 46D1770A
• Dorman: 535-612 / BJ90146
• Mevotech: MS50513 / MS50538
• Delphi: TC5907 / TC6678
• TRW: JBJ323
• UPC: 080066443010
• Condition: New

FEATURES

• COMPATIBILITY Fits 2004-2009 Cadillac SRX; 2005-2005 Cadillac STS; 2006-2008 Cadillac STS; 2008-2008 Cadillac STS; 2009-2009 Cadillac STS; 2010-2011 Cadillac STS
• Supports Suspension Movement: Designed as a key suspension component, the MOOG ball joints helps enable controlled pivoting movement between suspension parts for stable handling and steering response
• Durable Construction for Everyday Driving: Manufactured to withstand road stress and varying driving conditions, these suspension joints are built to promote strength, reliability, and long service life
• Helps Restore Steering Stability: Ideal for replacing worn suspension components, these ball joints supports proper alignment and consistent vehicle control for confident daily driving
