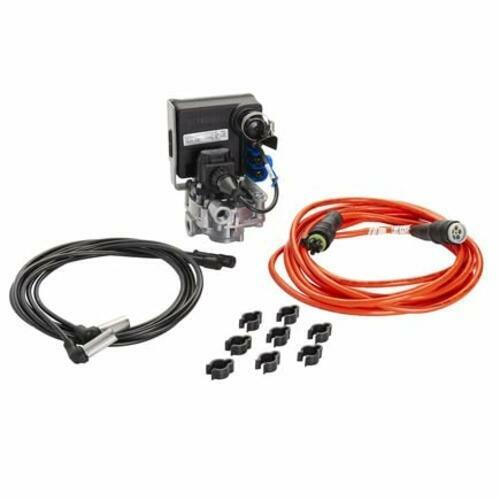

Haldex AQ960505 2S/1M ABS Relay Valve Kit Trailer ABS Control

Haldex AQ960505 is a 2S/1M trailer ABS relay valve kit designed for commercial trailer air-brake systems. The assembly combines the ABS electronic control function and pneumatic relay-valve operation into an integrated unit, providing a replacement solution for compatible trailer Anti-Lock Braking System configurations.

The 2S/1M designation refers to an ABS configuration using two wheel-speed sensors and one modulator. During braking, the system monitors wheel-speed information and can modulate air pressure when necessary to help prevent wheel lockup. Proper ABS operation helps maintain trailer stability and directional control during hard braking and low-traction conditions.

Product Details

• Brand: Haldex
• Part Number: AQ960505
• Product Type: Trailer ABS Relay Valve Kit
• ABS Configuration: 2S/1M
• System Type: Air Brake / Anti-Lock Braking System
• Application: Commercial Trailer
• Condition: New
• UPC: 767653303130

Features & Function

• Integrated trailer ABS control and relay-valve assembly
• Designed for 2-sensor / 1-modulator trailer ABS configurations
• Processes wheel-speed sensor information during braking
• Modulates pneumatic brake pressure when wheel lock is detected
• Designed for compatible commercial trailer air-brake systems
• Application-specific electrical and pneumatic connections
• Replacement solution for a failed or damaged trailer ABS control/relay valve assembly

Compatibility Information

Trailer ABS components are system-specific. Compatibility depends on the existing ABS configuration, ECU/valve design, wheel-speed sensor arrangement, electrical connectors, air-line plumbing, and trailer brake system.

Please verify Haldex part number AQ960505 against the component currently installed on your trailer before ordering. Matching only by appearance is not recommended.

Installation

Because this component is part of a commercial vehicle's safety-critical air-brake and ABS system, installation should be performed by a qualified heavy-duty brake technician. The system should be properly diagnosed and tested after installation, including verification of ABS warning-lamp operation and any applicable diagnostic codes.

Package Contents

Includes one new Haldex AQ960505 2S/1M trailer ABS relay valve kit as shown. Wheel-speed sensors, additional wiring, air lines, mounting hardware, or other brake-system components are included only when pictured or specifically stated.
