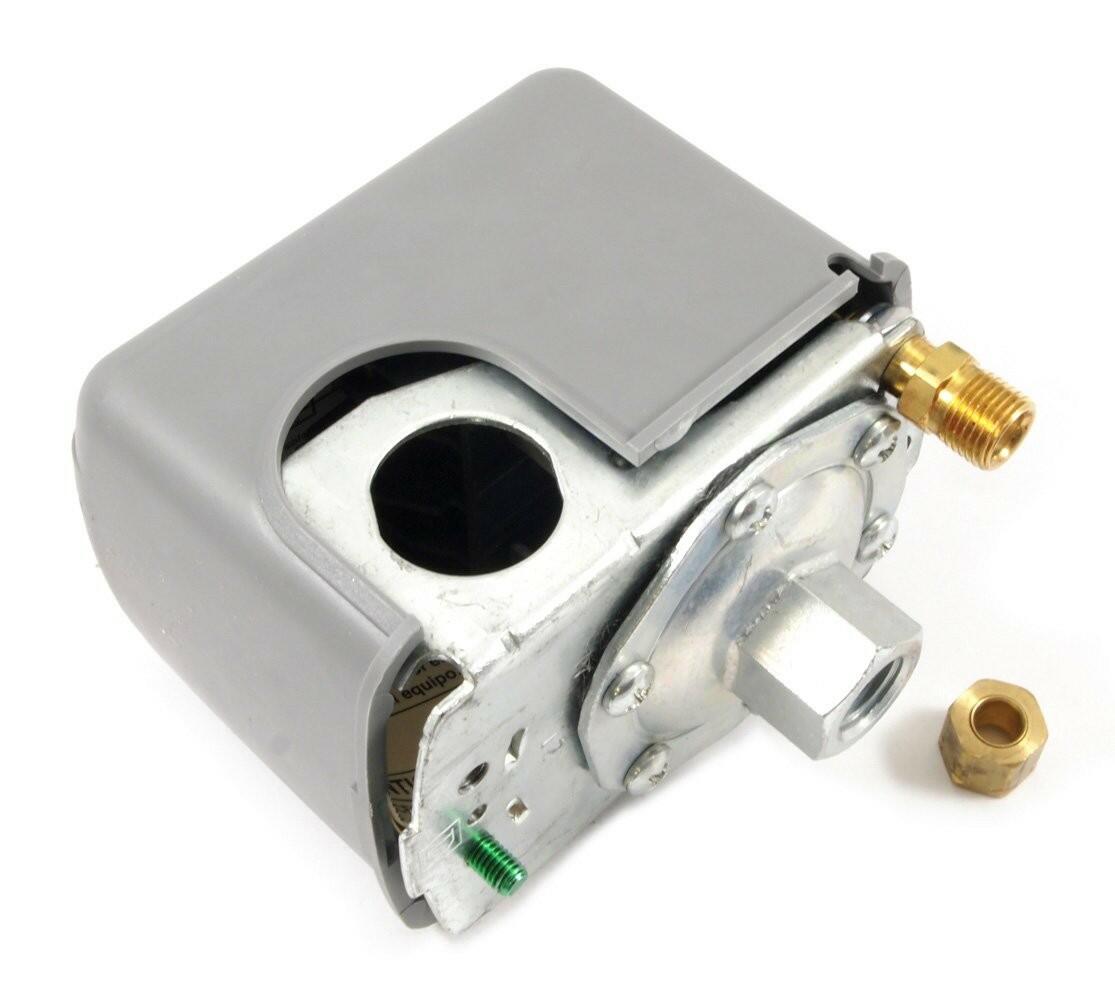

Forney 75556 Air Compressor Pressure Switch 95-125 PSI 1.5HP 115V 2HP 230V

Maintain proper air compressor tank pressure with the Forney 75556 Air Pressure Switch.

Designed for small air compressors, this pressure switch automatically controls compressor operation based on tank pressure. It is factory configured for a 95-125 PSI operating range and includes an unloader valve to relieve pressure for easier compressor restart.

The Forney 75556 is rated for 1-1/2 HP motors at 115 volts or 2 HP motors at 230 volts in single-phase applications. The pressure setting is adjustable from 40 to 150 PSI with an adjustable 30-40 PSI differential, making it suitable for compressor repair, maintenance, and replacement applications requiring the appropriate electrical and pressure specifications.

For compressed air applications only. Not suitable for liquids or other gases.

Specifications

• Brand: Forney
• Manufacturer Part Number: 75556
• Product Type: Air Compressor Pressure Switch
• Operating Pressure: 95-125 PSI
• Adjustable Pressure Range: 40-150 PSI
• Adjustable Differential: 30-40 PSI
• Motor Rating at 115V: 1-1/2 HP
• Motor Rating at 230V: 2 HP
• Phase: Single Phase
• Unloader Valve: Included
• Application: Air Compressors / Compressed Air
• Not Suitable For: Liquids or Other Gases
• UPC: 032277755567
• Condition: New

FEATURES

• Not suitable for liquids or other gases
• 1-1/2 HP at 115V
• 2 HP at 230V; 1 PH, 95-125 PSI
• Includes un-loader valve, adjustable 40-150 PSI and 30-40 PSI differential
