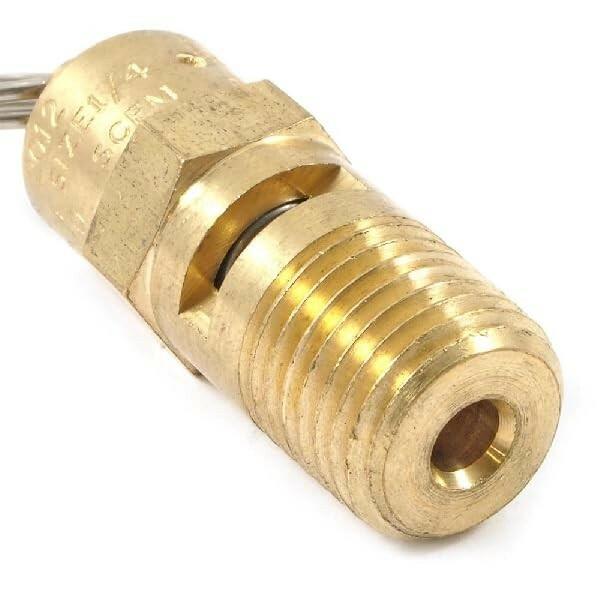

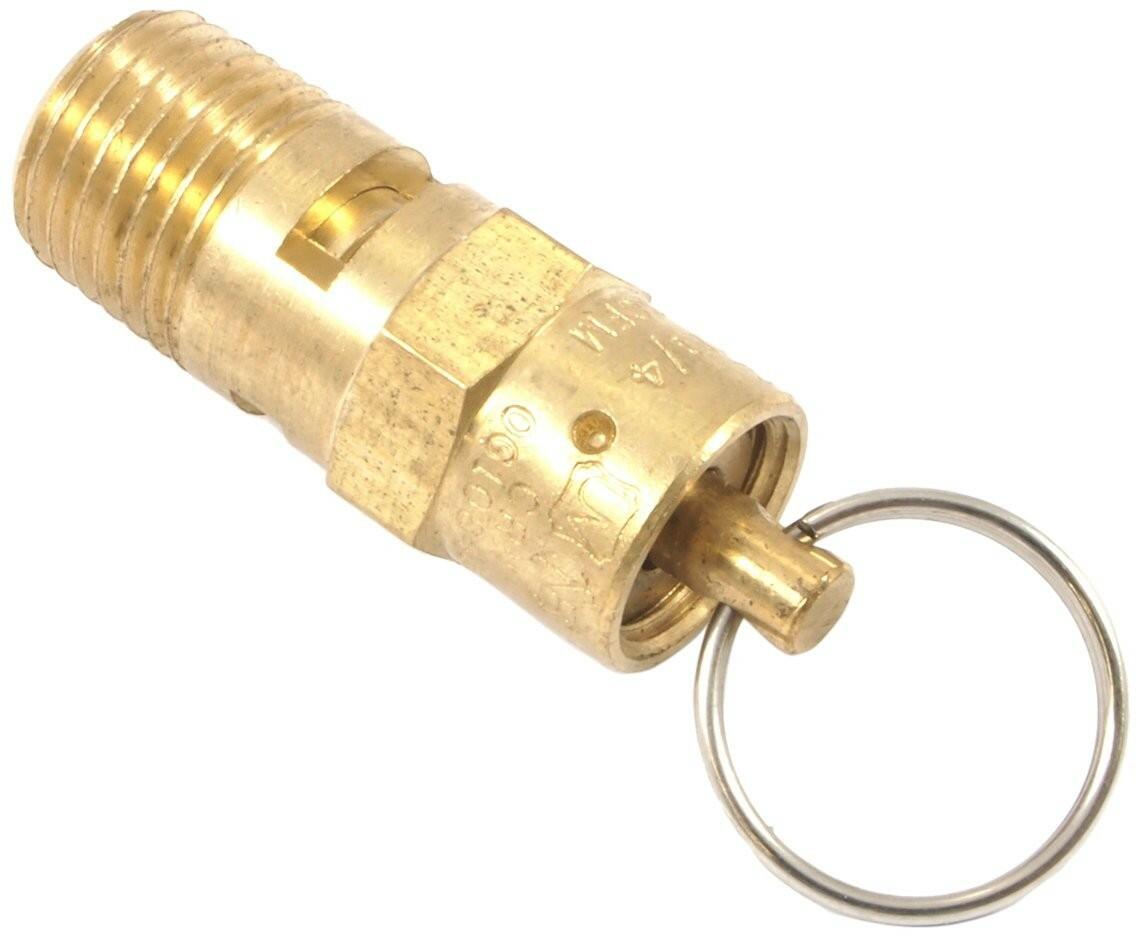

Forney 75551 Air Compressor Safety Relief Valve 1/4" MNPT 150 PSI 136 SCFM

The Forney 75551 Air Line Safety Valve is an ASME-standard brass pressure relief valve designed to protect compressed-air systems against excessive pressure. It features a 1/4" male NPT connection and is factory rated for 150 PSI with 136 SCFM airflow capacity. Forney's catalog confirms the 75551's specifications and identifies it as an ASME-standard safety valve.

The compact 2" design makes it suitable for air compressors and other compatible pneumatic systems where a dependable pressure-relief device is required. Construction includes a brass body, silicone sealing pad and zinc-plated music-wire spring. The valve is marked UV and NB.

Specifications:

• Brand: Forney
• Manufacturer Part Number: 75551
• UPC: 032277755512
• Product Type: Air Compressor Safety / Pressure Relief Valve
• Connection: 1/4" Male NPT (MNPT)
• Pressure Rating: 150 PSI
• Airflow Rating: 136 SCFM
• Body Material: Brass
• Height: 2"
• Seal: Silicone Pad
• Spring: Zinc-Plated Music Wire
• Standard: ASME
• Markings: UV / NB
• Application: Compressed Air / Air Compressor Systems
• Quantity: 1
• Condition: New

FEATURES

• American Society of Mechanical Engineers standard brass safety valve with male NPT
• 2-Inch height
• Silicone pad bubble tight within +/- 10-Percent
• Zinc-plated music wire spring
• "UV" "NB" stamped and rated for 150 PSI/136 standard cubic feet per minute
