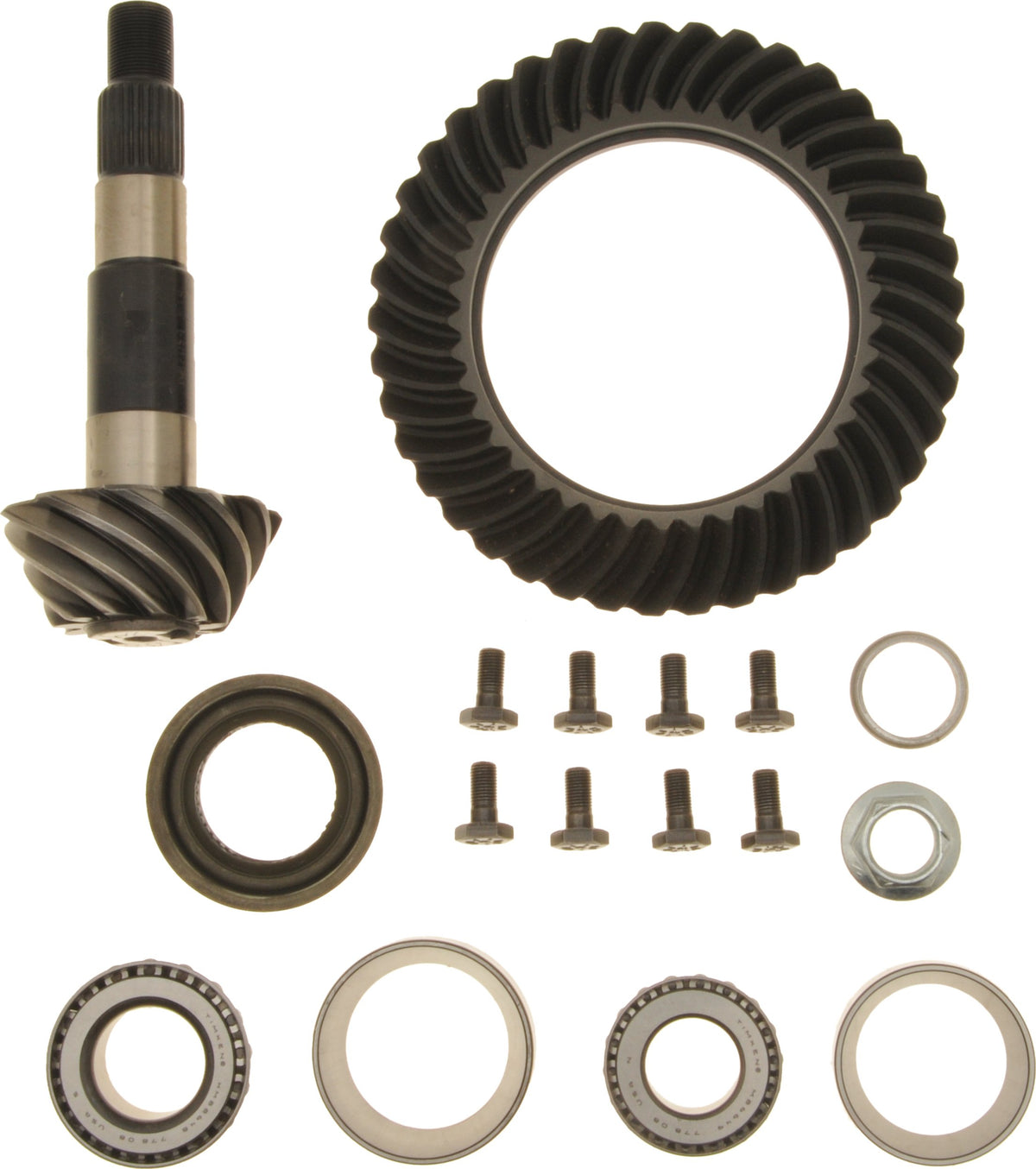

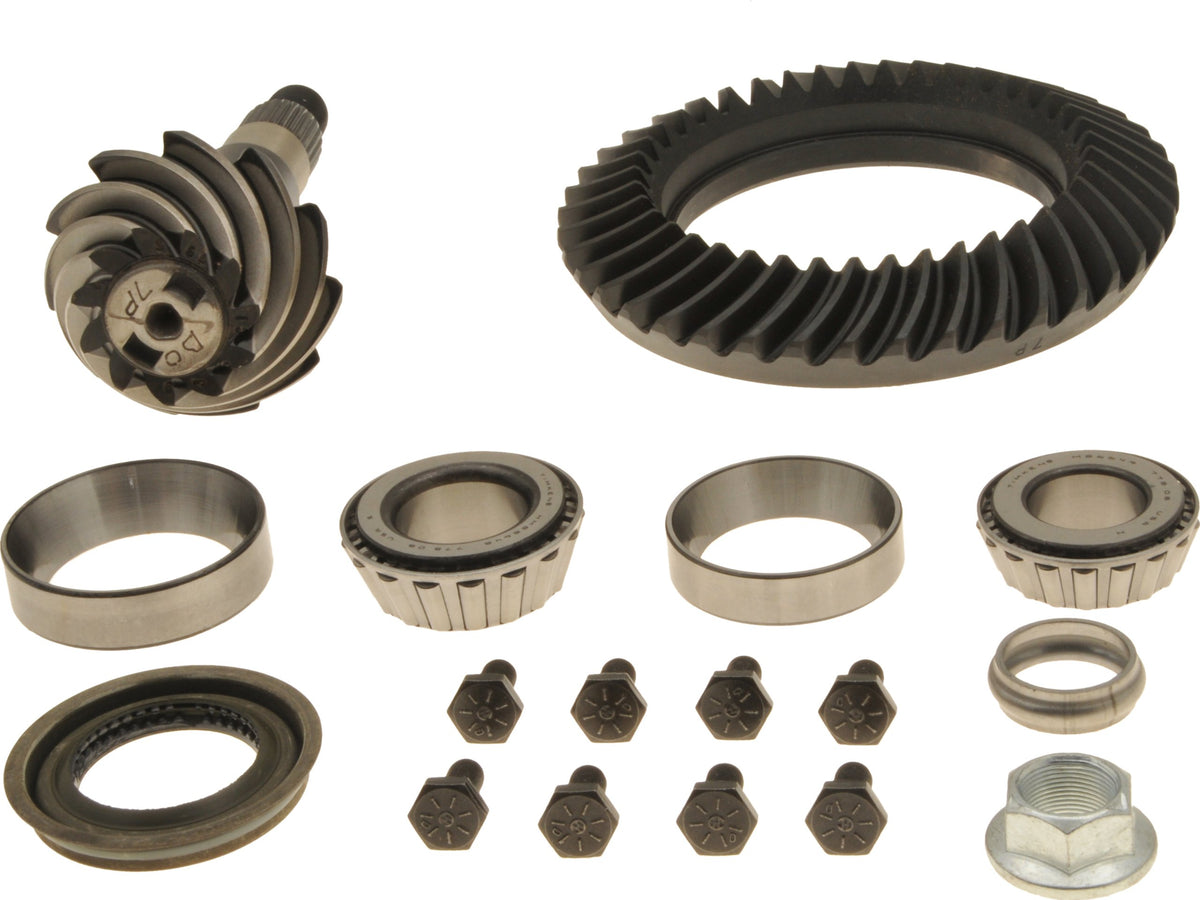

Dana Spicer 707244-8X Dana 35 Ring & Pinion Gear Kit 3.73 Ratio Jeep

Genuine Dana Spicer 707244-8X differential ring and pinion kit for Dana 35 rear axle applications with a 3.73 gear ratio. OE-specification Spicer components provide a direct solution for compatible differential service and rebuilding applications.

Specifications

• Brand: Dana Spicer
• Part Number: 707244-8X
• Type: Differential Ring & Pinion Kit
• Axle Model: Dana 35
• Gear Ratio: 3.73:1
• Ring Gear Teeth: 41
• Pinion Gear Teeth: 11
• Ring Gear Diameter: 7.640"
• Ring Gear Bolts: 8
• Ring Gear Rotation: Standard
• Pinion Spline Count: 26
• Pinion Shaft Diameter: 1.406"
• Axle Type: Semi-Floating
• Position: Rear
• Carrier Break: 3.54 and Up
• Installation Kit Included: Yes
• UPC: 023913128081
• Condition: New

Fitment Details

• Dana 35 rear axle applications
• 3.73:1 gear ratio
• Known applications include select Jeep Wrangler TJ and Jeep Grand Cherokee models
• Verify axle model, gear ratio, carrier configuration, and vehicle application before purchase

FEATURES

• For DANA 35 applications
• Ratio: 3.73
• Tooth Pattern: 41-11
• 26-Spline 8-Bolt
• Ring Gear: 7.64" | Pinion Shaft: 1.406"
