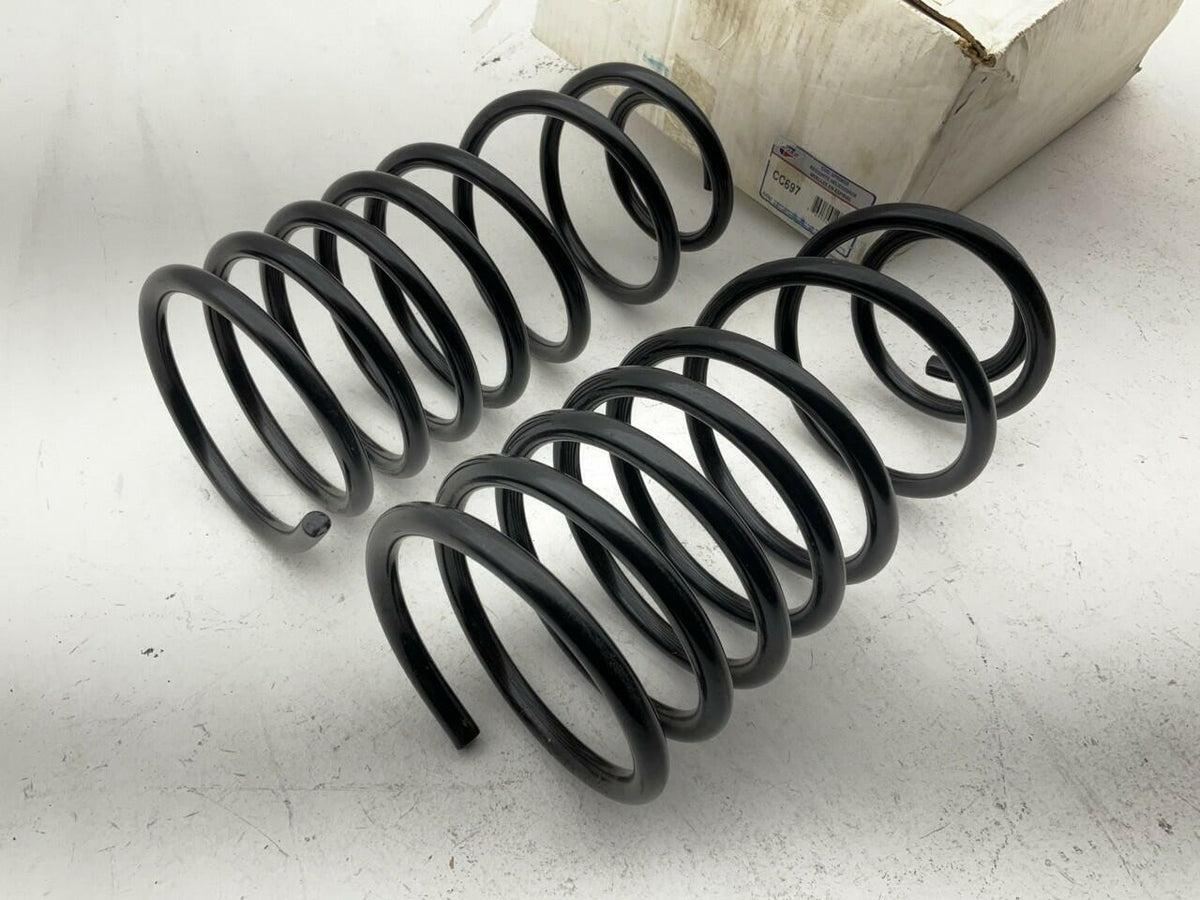

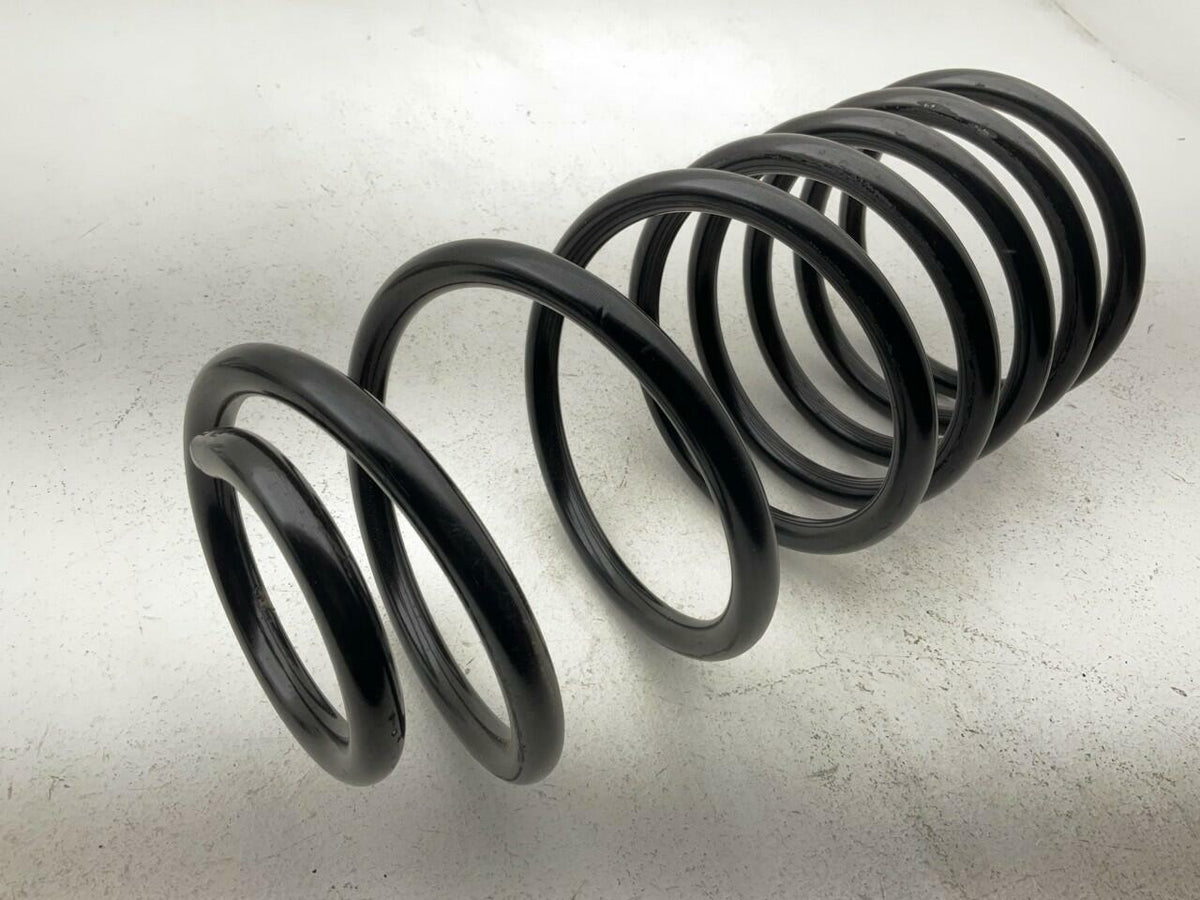

Carquest CC697 Rear Variable Rate Coil Springs Pair 00-03 Chevy Impala

The Carquest CC697 rear coil spring set is a pair of variable-rate replacement rear springs for select GM passenger-car applications. The progressive/variable spring rate is designed to provide appropriate ride characteristics under normal driving while increasing resistance as the suspension is loaded.

The CC697 specification calls for a 15.81-inch free height, 9-inch installed height and 0.56-inch wire diameter. The spring uses a pigtail end on one side and a tangential end on the other, with a rated load of approximately 680 lb and a 122 lb/in spring rate.

Verified fitment includes 2000 Chevrolet Impala 3.8L V6 and 20002003 Chevrolet Impala 3.4L V6.

Specifications:

• Brand: Carquest
• Part Number: CC697
• Interchange / Reference: MOOG CC697
• UPC: 769106106305
• Product Type: Coil Spring Set
• Placement: Rear
• Quantity: 2 Springs / Pair
• Spring Type: Variable Rate
• Free Height: 15.81"
• Installed Height: 9.00"
• Wire Diameter: 0.56" / 14.3 mm
• Inside Diameter: 5.42" / 137.7 mm
• Approx. Outside Diameter: 6.54"
• Spring Rate: 122 lb/in
• Rated Load: 680 lb
• End 1: Pigtail
• End 2: Tangential
• Color: Black
• Verified Fitment: 20002003 Chevrolet Impala, depending on engine/application
• Condition: New
